Lithium Deep Cycle 36V 150Ah 250A LiFePO4 Battery Pack For Golf Cart Application
High Current Golf Cart Lifepo4 36V 150Ah 250A Battery Rechargeable Lithium ion Batteries with LCD
Nominal Voltage 38.4V
Nominal Capacity 150 Ah
Capacity @ 20A 300 min
Energy 5760Wh
Resistance ≤30 mΩ @ 50%
SOC Self Discharge <3% / Month
Balancing function
With Smart BMS has the over charge, over discharge, over current, short circuit, Over Temperature protection and balance function.
Can with Bluetooth/RS485/RS232/SMbus/I2C communuctaion
FEATURES & BENEFITS
- Long runtime, less downtime – 150Ah with 4,000 cycles – built to make it through the toughest of routes on a single charge.
- Long lifetime – Trojan Lithium-ion can last up to ten years
- Reduce your total cost of ownership – one LeadyonLithium-ion purchase can last the lifetime of your equipment
- Virtually maintenance free (preventative maintenance only) – no more watering or battery replacements
- Opportunity charging – charge up while on a break without damaging the batteries
- Safety comes first – designed with advanced safety features, including four levels of safety redundancy
- Smart BMS (Battery Management System) self-protects against short circuits or overheating
- Optional dashboard battery state-of-charge gauge available
- Optional charger for Lifepo4 golf cart battery pack only.
- Optional mounting brackets for installation the battery pack .
The ideal drop-in replacement & upgrade your golf cart from AGM Batteries to LiFepo4 Battery.
Light in weight ,Small in size ,Play Longer ,10 Years Design life ,Zero maintenance,Plug and Play
Specification of 48V Lifepo4 Golf Cart Battery with LCD display :
| ELECTRICAL SPECIFICATIONS | | MECHANICAL SPECIFICATIONS |
| Nominal Voltage | 38.4V | | Terminal Type | M8 |
| Nominal Capacity | 150Ah | | Weight | 52kg |
| Nominal Energy | 5760Wh | | Case Dimension(L*W*H) | 572*308*204mm |
| Internal Resistance | ≤30 @50% SOC | | Case Type | Stainless Steel
Metal case |
| Capacity | @30A: 320minutes(5.3hours) | | Cell type / Chemistry | LiFePO4 cells |
| Self Discharge | 5% /per month | | LCD or Bluetooth Function | Optional |
| Maximum In Series | NO | | BMS:low voltage,high voltage,over temperature, |
| Maximum In Parallel | Unlimited | | Over current,short-circuit protection .etc |
| Discharge Current and Voltage Specifications | | Charge Current and Voltage Specifications |
| MAX Continuous Discharge Current | 250A | | Max Charge Current | 150A |
| Peak Current | 300A /120s | | Recommended Charge Current | 20A - 50A |
| Discharge pulse current | 900±50A (31±10ms) | | End of Charge voltage | 43.8V±0.2V |
| BMS Low Voltge Cut-off | 24V | | End of discharge voltage | 24V |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | | Balancing Voltage | 3.6V±0.05v pc |
| Temperature Ranges | | COMPLIANCE SPECIFICATIONS |
| Discharge Temperature | -20～+65℃ | | Certifications | CE for Battery Pack |
| Charge Temperature | -20～+45℃ | | UL1642 & IEC62133 for cells |
| Storage Temperature Range | -20～+45℃ | |
| Battery High Temperature Protection | 90℃ | | Shipping classification | UN 3480 |
Multiple monitoring for optional of 36V 150Ah Lithium golf cart battery:
By LCD .
By Bluetooth APP (Free)

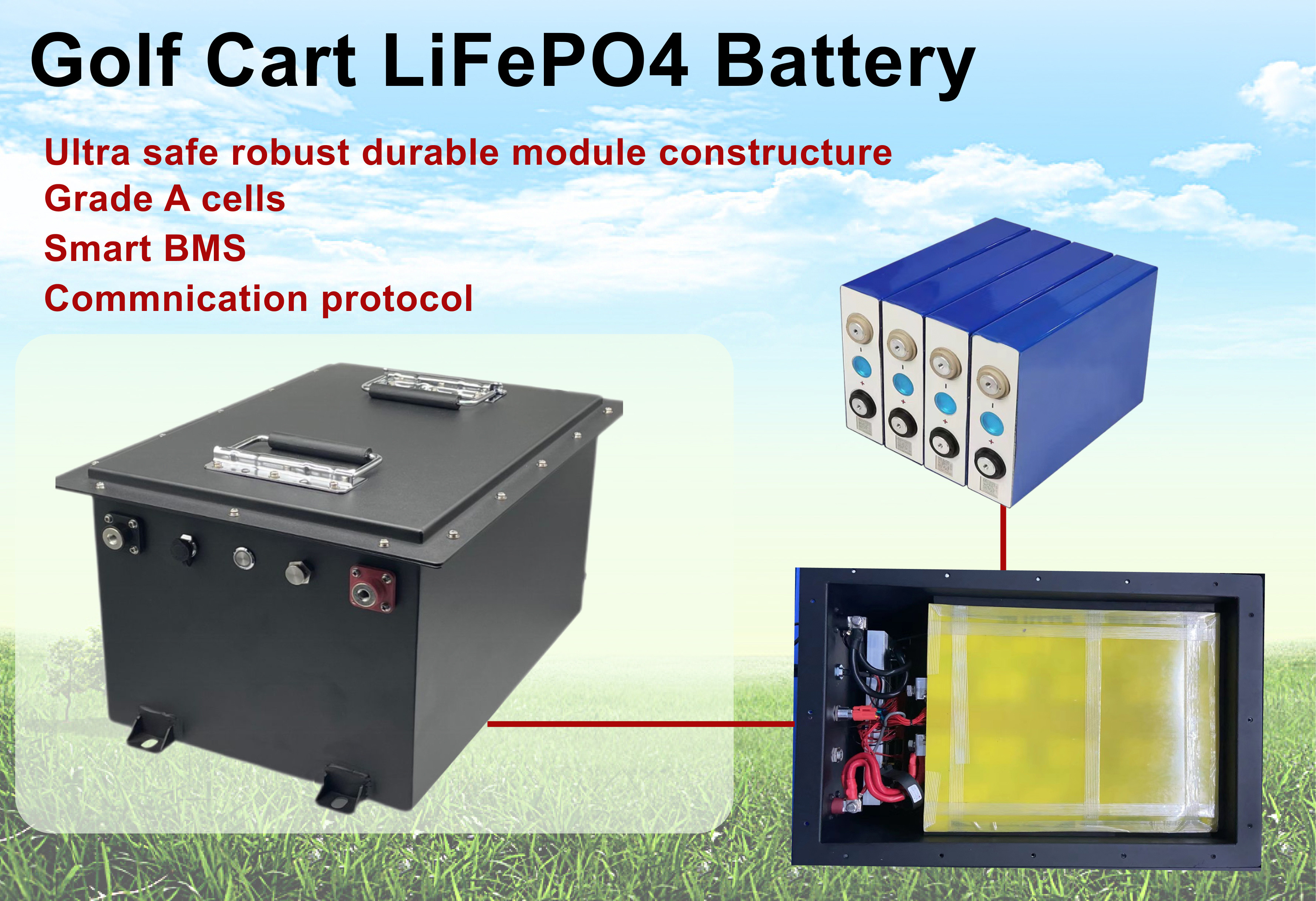

Bulit-in super safety lifepo4 prismatic cells and BMS
Multiple Protection Circuit with MOS / IC solution with low internal resistance
More Golf Cart Lithium Battery For Optional:
Welcome to customize LOG /Size /Functions / Color :
FAQ
1. Are you factory or trade company?
We ara leading battery manufacturer in China,Is a high-tech enterprise, specializing in R&D and marketing of Lithium rechargeable battery products. Our Lithium battery products are widely used in Marine boat /RV/ Camping cart/AGVGolf-cartelectric-motorcycle/Solar energy storage systemelectric vehicleselectric tools/UPS backupTelecom towersMedical equipment and etc.
2.What is your main product?
•Deep cycle LiFePo4/NMC batteries, 12V-96V LiFepo4 3-400A optional;
•Start-stop LiFepo4 12V 200CCA-1600CCA
•1-32S Lithium PCM/BMS max 250A
•NMC/LFP/LTO cells
3.When you delivery order?
Normally 7-15 days for samples order , it can be negotiated based on exact order quantity and schedule.
4.Do you accept OEM?
Yes sure, can customized your brand battery
5.May i get more golf cart lifepo4 battery?
Yes,please contact us.
6.How to get a quote?
Please contact us,sales6@leadyo-battery.com
